• UV Disinfection: Key Terms & Essentials

  At Nuvonic, we’ve been using UV to protect air, water, and surfaces for over 100 years. We understand that UV disinfection systems can feel overwhelming, so we’ve broken down the core terms for you.









• What is UV disinfection?

  UV disinfection uses ultraviolet (UV) light to eliminate or inactivate microorganisms such as bacteria, viruses, and protozoa. It is widely used to disinfect water, air, and various surfaces to ensure a clean and safe environment. UV light damages the nucleic acids in microorganisms, preventing them from reproducing and rendering them harmless. UV disinfection is a proven and effective method for maintaining hygiene and preventing the spread of disease.









• How does UV disinfection work?

  UV disinfection uses UV-C light to destroy microorganisms by damaging their DNA or RNA, preventing replication and infection. The method uses no chemicals, making it environmentally friendly and effective across applications such as water treatment, air disinfection, and surface sterilization. UV disinfection is widely recognized as a non-toxic, sustainable solution for controlling the spread of harmful pathogens.





• Benefits of UV Disinfection Systems

  The benefits of UV disinfection systems include:

  • UV disinfection eliminates a wide range of pathogens without the use of chemicals.

  • UV is also used to destroy or oxidize ozone, TOC, chlorine, chloramines, 1,4-dioxane, and other harmful chemicals.

  • Environmentally friendly and safe.

  • Requires minimal maintenance.

  • Effective across a wide range of water, air, and surface disinfection applications.

• The Importance of UV Disinfection in Various Applications

  UV disinfection is essential for ensuring the safety of water supplies, disinfecting air and surfaces in medical facilities, and keeping industrial processes free from microbiological contamination.









• Components of a UV Disinfection System

  The main components of UV disinfection systems are:

  • UV Lamps: Emit the ultraviolet light necessary for disinfection.

  • Quartz Sleeves: Protect the lamps and ensure optimal UV light transmission.

  • Ballasts: Regulate the electrical current supplied to the lamps.

  • Control Units: Monitor and manage the operation of the system.





• Types of UV Lamps Used in Disinfection Systems

  The main types of lamps used in UV disinfection systems are:

  • Low-pressure mercury lamps: Used in standard disinfection where performance is not a top priority.

  • Amalgam lamps: Energy-efficient and used in applications where lamp size is not a limiting factor.

  • Medium-pressure mercury lamps: Provide a broader UV spectrum, suitable for more resistant pathogens.

• The Role of the UV Module in Disinfection Systems

  The UV module houses the UV lamps and other components, ensuring their proper alignment to maximize exposure of water, air, or treated surfaces to UV radiation.



• Electrical Components and Their Importance in UV Systems

  Electrical components, including ballasts and control units, are essential for maintaining the proper operation of UV lamps and ensuring consistent disinfection performance.





• The Role of Stainless Steel in UV Disinfection Equipment

  Stainless steel is used for its durability, corrosion resistance, UV reflectivity, and to ensure that materials do not leach harmful contaminants into the treated liquid. These factors enhance the overall efficiency and lifespan of the system.

• Factors Affecting the Performance of UV Disinfection Systems

  The performance of UV disinfection systems can be influenced by the following factors:

  • Water quality (e.g., turbidity, organic matter)

  • UV transmittance

  • Lamp age and maintenance

  • Flow rate through the system

• Flow Rate and Its Impact on UV Disinfection Effectiveness

  The flow rate determines the exposure time of microorganisms to UV light. Optimal flow rates ensure a sufficient UV dose to achieve effective disinfection.





• UV Dose Monitoring Algorithms for Optimal Performance

  These algorithms continuously measure the UV dose and adjust system operation as needed to ensure effective disinfection.





• Approaches to Validation and Verification of UV Disinfection Systems

  Validation involves testing the system under various conditions to ensure it consistently meets disinfection standards. Verification includes routine inspections and monitoring to confirm ongoing performance.









• Applications of UV Disinfection Systems

  Industrial Applications: Used to ensure process water is free from microorganisms, reducing the risk of contamination in food and beverage production, pharmaceuticals, and other industries.

  Wastewater Treatment: UV disinfection effectively reduces pathogens in treated wastewater before discharge, protecting public health and ecosystems.

  Drinking Water: UV systems provide an extra barrier against waterborne pathogens, ensuring safe drinking water without harmful chemicals.

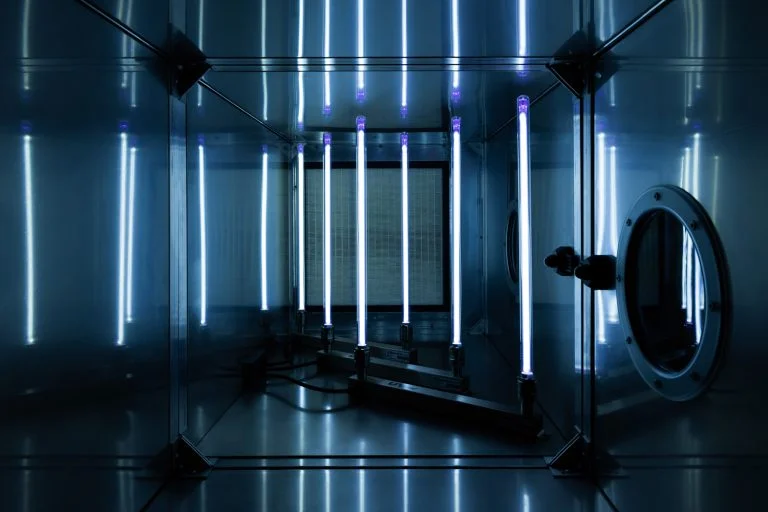

  Commercial and Residential Applications: UV disinfection devices can be installed in HVAC systems, water treatment units, and appliances to improve air and water quality.

  Surface Disinfection: Portable and stationary UV devices disinfect surfaces in healthcare facilities, hospitality, and public spaces, helping limit the spread of infectious diseases.
